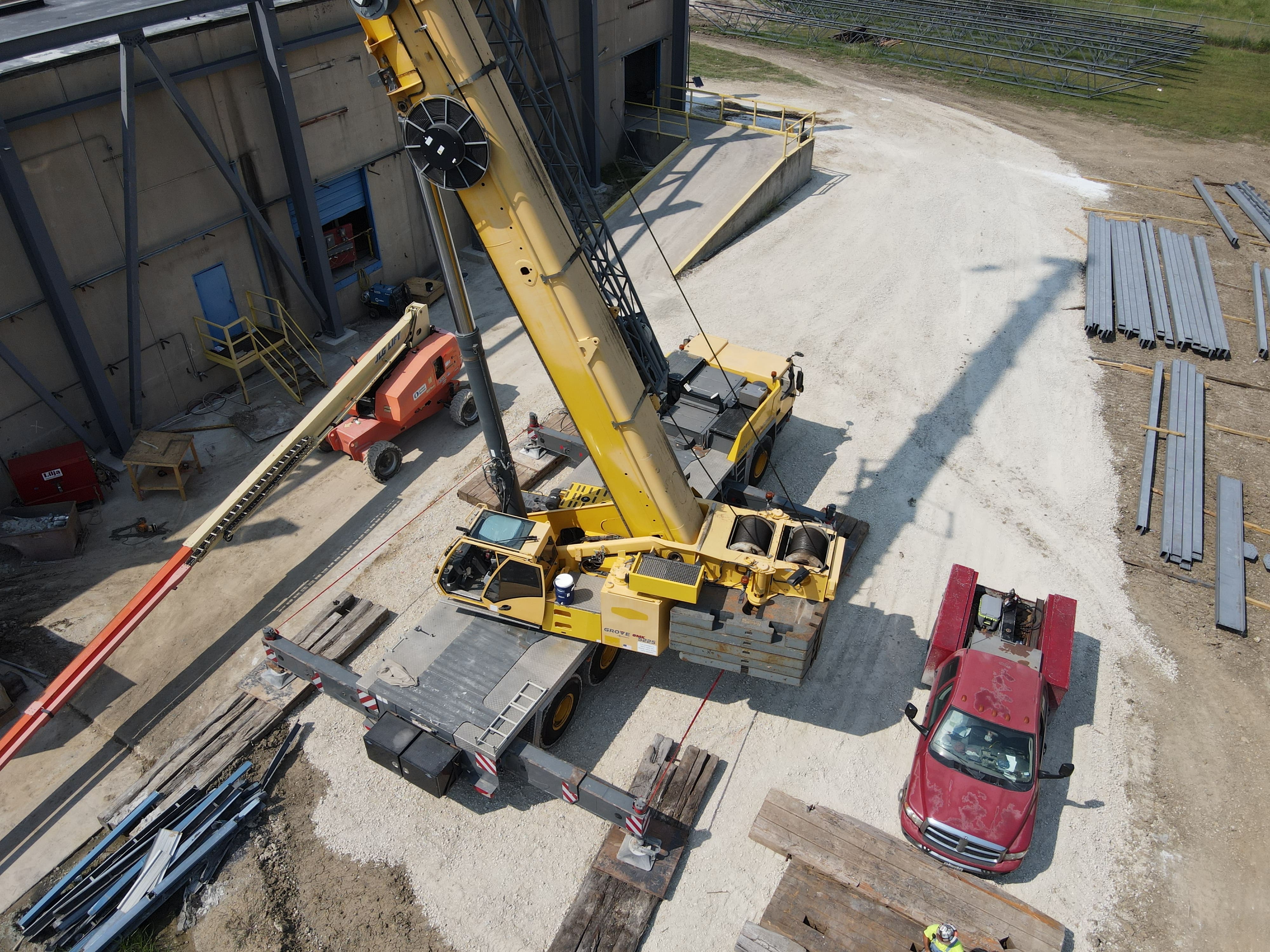

The new GMK5225

The new GMK5225 has the longest boom in its class reaching
tip heights of up to 331 ft with jib extensions. The crane’s axle
spacings are specifically designed for US market requirements
and offer maximum on-site flexibility with a choice of four
outrigger width settings

Perfect for the following jobs:

HVAC

Bridge Beams

Structural Steel

Ton Capacity

115-225 Tons

Main Boom

210-331 feet

Dimensions

Transport Length

Transport Width

8.24ft in

Transport Height

13.13ft in

Ground Clearance

1.6ft in

Width W/ Outriggers Extended

26.58ft in

Carrier Length

44.39ft in

Upper Structure Tail Swing Radius

12.39ft in

Boom

Min Height @ Max Raise Angle

55ft in

Max Height @ Max Raise Angle - No Jib

219.82ft in

Min Working Radius

8ft in

Max Working Radius

195ft in

Max Elevating Angle

83degrees

Max Lift Capacity

450000lb

Swing Speed

1.3rpm

Number Of Sections

Specifications

Upper Structure Engine

Make

Grove

Model

OM924LA

Gross Power

201.2hp

Power Measured @

2200rpm

Max Elevating Angle

83degrees

Max Lift Capacity

450000lb

Max Torque

590.1lb ft

Torque Measured @

1200rpm

Operational

Operating Weight

127753.5lb

Number Of Axels

Upper Structure Fuel Capacity

63.5gal

Carrier Fuel Capacity

153.3gal

Upper Structure Hydraulic System Fluid Capacity

229.9gal

Operating Voltage

24V

Alternator Supplied Amperage

80amps

Tire Size

445/95 R 25

Transmission

Transmission Type

Allison 4000 SP

Number Of Forward Gears

Number Of Reverse Gears

Max Speed - Forward

52.9mph

Documentation

GMK5225-Product-Guide-Imperial | pdf | 3.18 MB

GMK5225-TierIII-Product-Guide-Imperial | pdf | 3.77 MB
